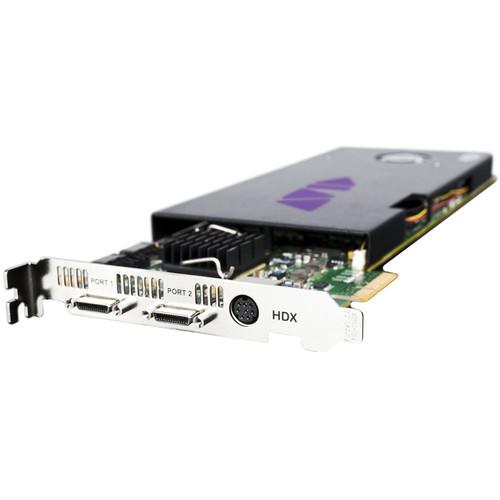

User Manual for Avid Pro Tools | HDX PCIe Card Click to enlarge the picture
Contents of the user manual for the Avid Pro Tools | HDX PCIe
- Product category: Audio Interfaces & Systems Avid
- Brand: Avid
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avid Audio Interfaces & Systems
|
User manual for the Avid Pro Tools | HDX PCIe contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avid product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avid user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avid product will considerably shorten its lifespan!
|
Product description The Avid Pro Tools | HDX PCIe Card brings high-speed DSP power to your Pro Tools | HDX system for direct-to-disk recording and playback, and plug-in processing with near-zero latency. It provides up to 256 voiceable tracks, 64 channels of simultaneous I/O, and supports up to 24-bit / 192 kHz Pro Tools sessions.The card easily installs into your existing Mac or Windows tower/desktop computer. To get a full 64 channels of I/O, the Pro Tools | HDX PCIe card allows you to connect up to four, 16-channel Pro Tools | HD audio interfaces. Two of the interfaces connect directly to DigiLink Mini ports 1 and 2, and the other two interfaces connect to the expansion ports on the Pro Tools | HD audio interfaces. Note: Does not include Pro Tools | HDX software - Key Features
-
- Installs into your existing tower, desktop computer, or chassis (Mac, Windows)
- Provides DSP power for mixing and plug-in processing
- Compatible with Pro Tools | HDX software
- Near-zero latency
- Supports up to 64 channels of I/O
- Supports up to 256 voiceable tracks of direct-to-disk recording and playback
- Sessions up to 24-bit and up to 192 kHz
- Includes power cable to connect to the motherboard in your Mac computer
- Includes power cable to connect to a hard drive power source in your Windows computer
- 12' DigiLink Mini cable for connecting HDX PCIe card to an audio interface
- Includes HDX TDM cable (SATA) to connect multiple HDX PCIe cards
- DigiLink Mini Ports
-
- Two DigiLink Mini ports for connecting up to four HD audio interfaces for up to 64 channels of audio I/O
- DigiSerial Port
-
- One DigiSerial port for connecting a SYNC peripheral
UPC: 724643114220 In the Box Avid Pro Tools | HDX PCIe Card HDX TDM Cable HDX PCIe Power Cable for Mac HDX PCIe Power Cable for Windows 12' DigiLink Mini Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avid Pro Tools | HDX PCIe Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvid 9900-65173-00 Specs | Type | PCIe card | | System Requirements | Qualified Mac or Windows computer running Pro Tools | HDX software | | Ports | 2 x DigiLink Mini ports
1 x DigiSerial port (8-pin mini-DIN) | | I/O | Supports up to 64 channels of I/O | | Tracks | Supports up to 256 tracks with Pro Tools | HDX software | | Audio Resolution | Up to 24-bit
Up to 192 kHz | | | | Package Weight | 2.805 lb | | Box Dimensions (LxWxH) | 16.8 x 7.6 x 3.5" |
